For laying indoors, in cable ducts, indoors, in ground and water, as well for laying on racks for industrial and switching systems and power stations.
The resistant PE sheath can be subject to heavy mechanical loads during installation and operation.
The resistant PE sheath can be subject to heavy mechanical loads during installation and operation.
Nominal voltage | Uo/U: 12/20 kV |
Test voltage | 42 V |
Bending radius fixed (xD) | 15 |
Operating temperature fixed | -20°C bis 90°C |
Operating temperature mobile | -20°C bis 90°C |
Short-circuit temperature | 250°C |
Short circuit duration | 5 sek. |
Standard | DIN VDE 0276 part 620 |
Standard CE | CE = The product is conformed with the EC Low-Voltage Directive 2014/35/EU. |
inner Conductor | stranded aluminium conductor acc. to DIN VDE 0295 Kl.2 / IEC 60228 cl.2 |
core Insultation | conductor screen of semi-conducting compound - XLPE insulation - core screen of semi-conducting compound - semi-conducting swellable tape |
inner Sheath Material | Trennband |
Overall shielding | concentric conductors (copper wires) with copper tape for fixing |
Outer sheath material | Polyethylene (PE), black |

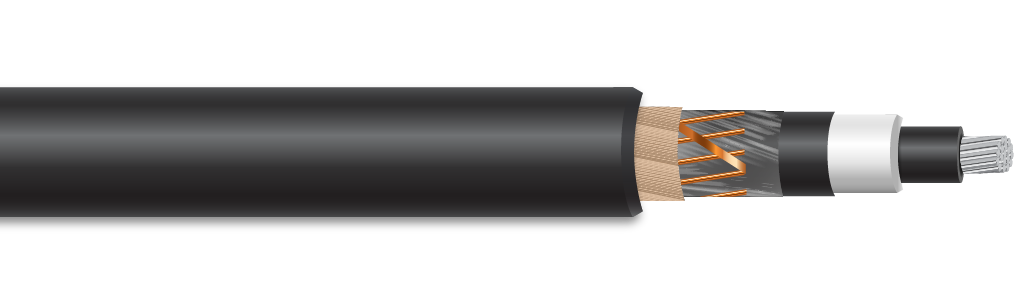

NA2XS(F)2Y
